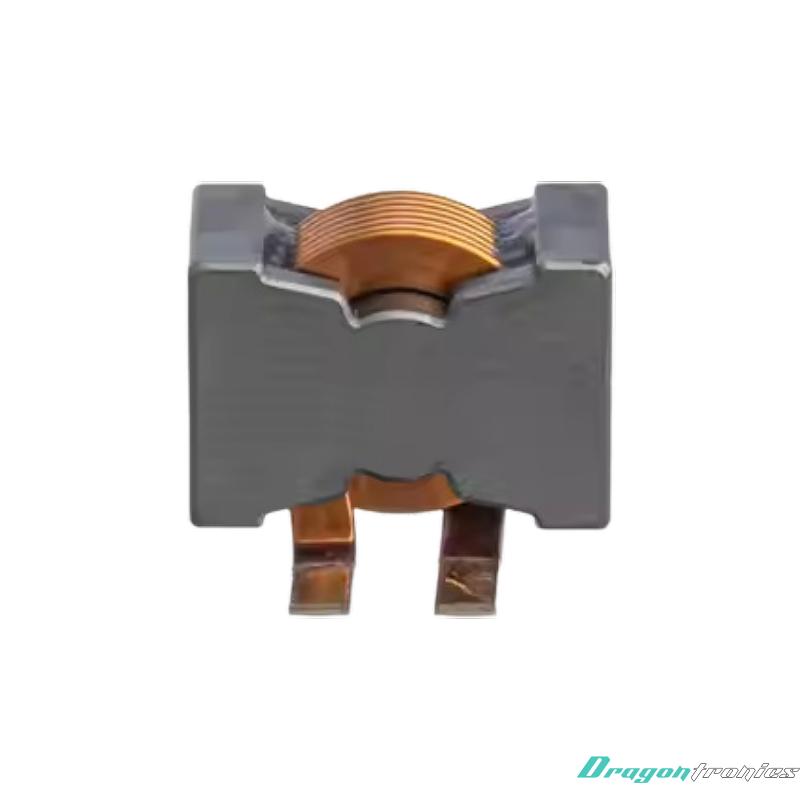

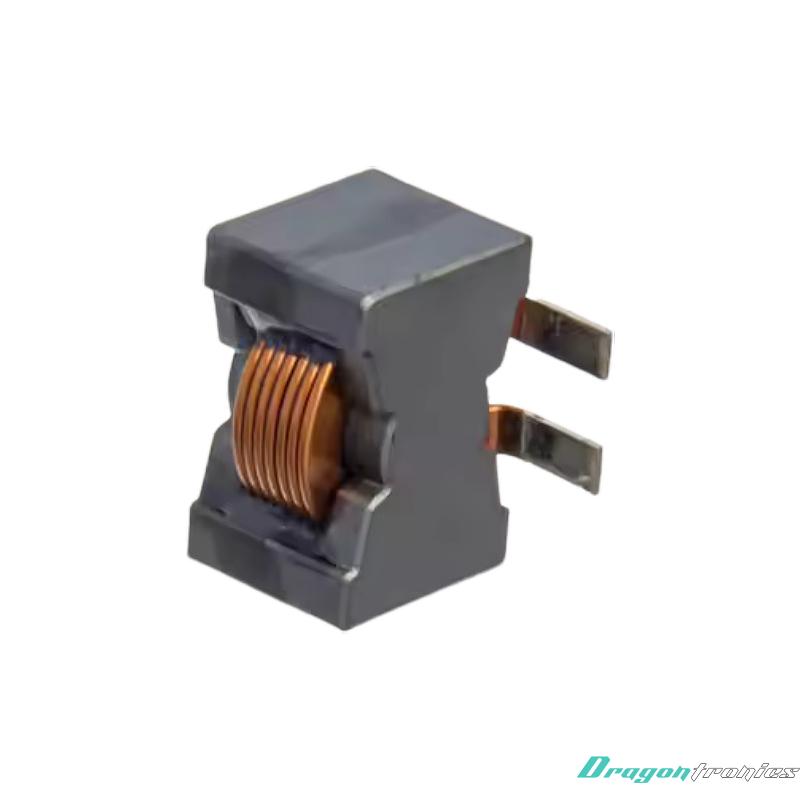

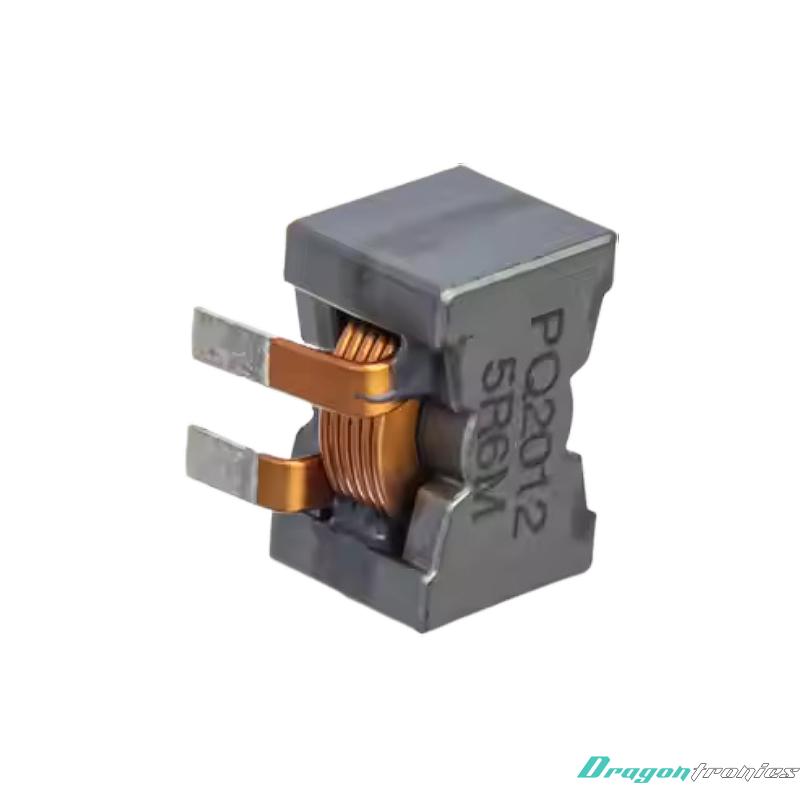

PQ transformer

Product description: A PQ transformer typically refers to a Power Quality Transformer or a Power Quality (PQ) monitoring transformer. However, I believe you're referring to PQ (Power Quality) transformers, which are desig
INQUIRY

PQ transformers are designed for high efficiency and compact size, making them ideal for various applications.

Here are some key specifications:

Core Material: Typically made from Mn-Zn ferrite, which offers high magnetic permeability and low core loss.
Sizes: Available in various sizes, such as PQ20/16, PQ26/20, PQ32/20, etc., to suit different power requirements.
Temperature Range: Operating temperature ranges from -30°C to +105°C.
Inductance: Varies depending on the core size and material, with typical AL values ranging from 100 nH/N² to 7000 nH/N².
Core Loss: Designed to minimize core loss at high frequencies, typically measured at 100 kHz and 200 mT.
